Flight computers are used in aircraft, spacecraft, drones, and satellites where every cubic centimetre is precious. Design is always a compromise of different constraints: Size & Weight, High Reliability, Radiation Tolerance, Thermal Management, EMI/EMC, Power Efficiency

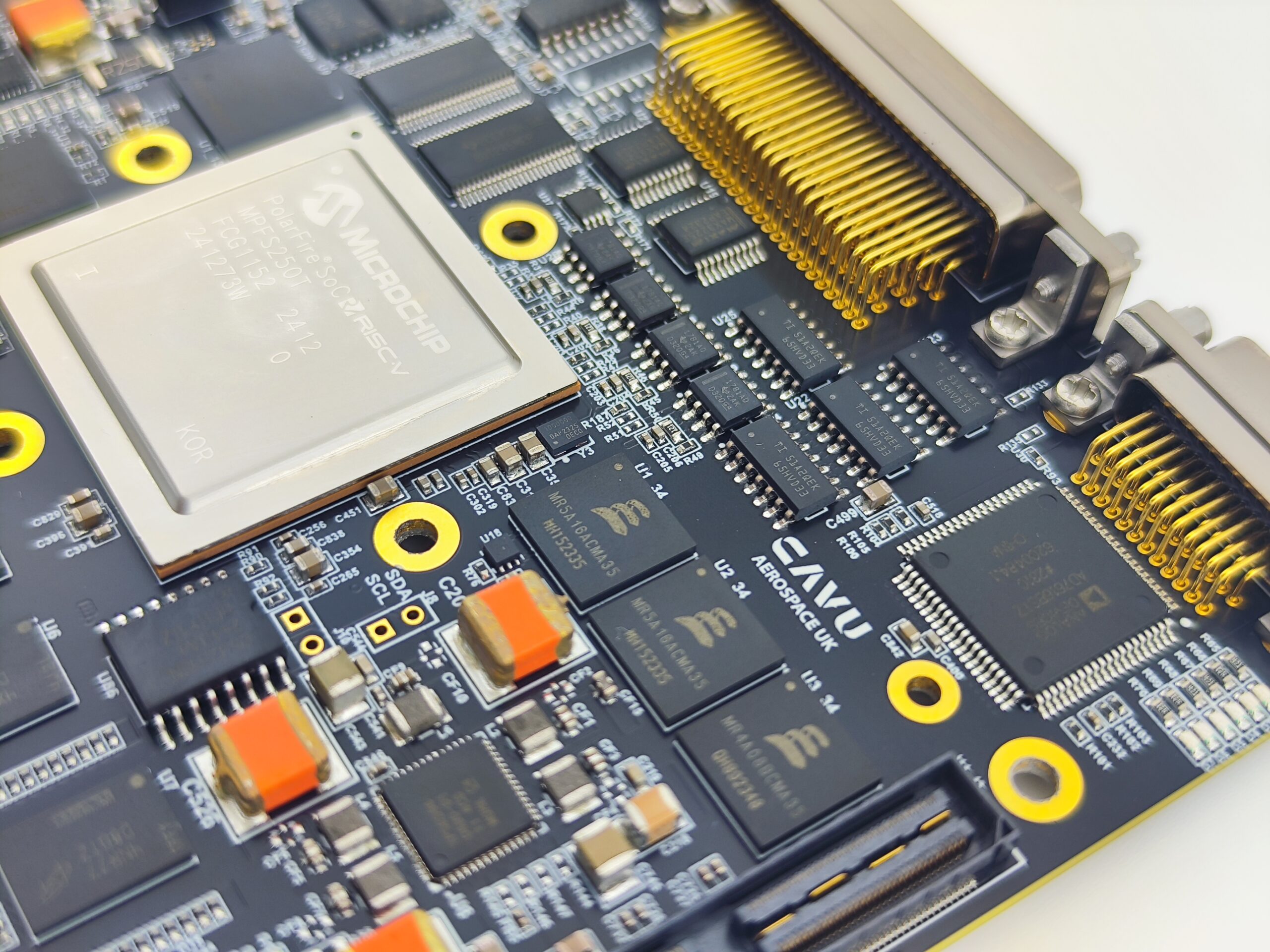

CAVU OBC-Cube Polar is flight proven flight computers for launch vehicles, providing Six Nine reliability index, thanks for multiple redundancy & availability improvement techniques in design. All in 96mm * 96mm dimensions & 18 layers PCB make it very attractive option for aerospace projects! Several compact PCB design techniques have been implemented, along with advancements in manufacturing capabilities, to achieve minimal hole-to-copper clearance
Minimum track width 0.102mm
Minimum via/hole size 0.15mm
Minimum track to via/hole clearance 0.163mm
Minimum track to via/hole outer diameter 0.14mm
Full X-RAY inspection for all assembled boards with BGA
