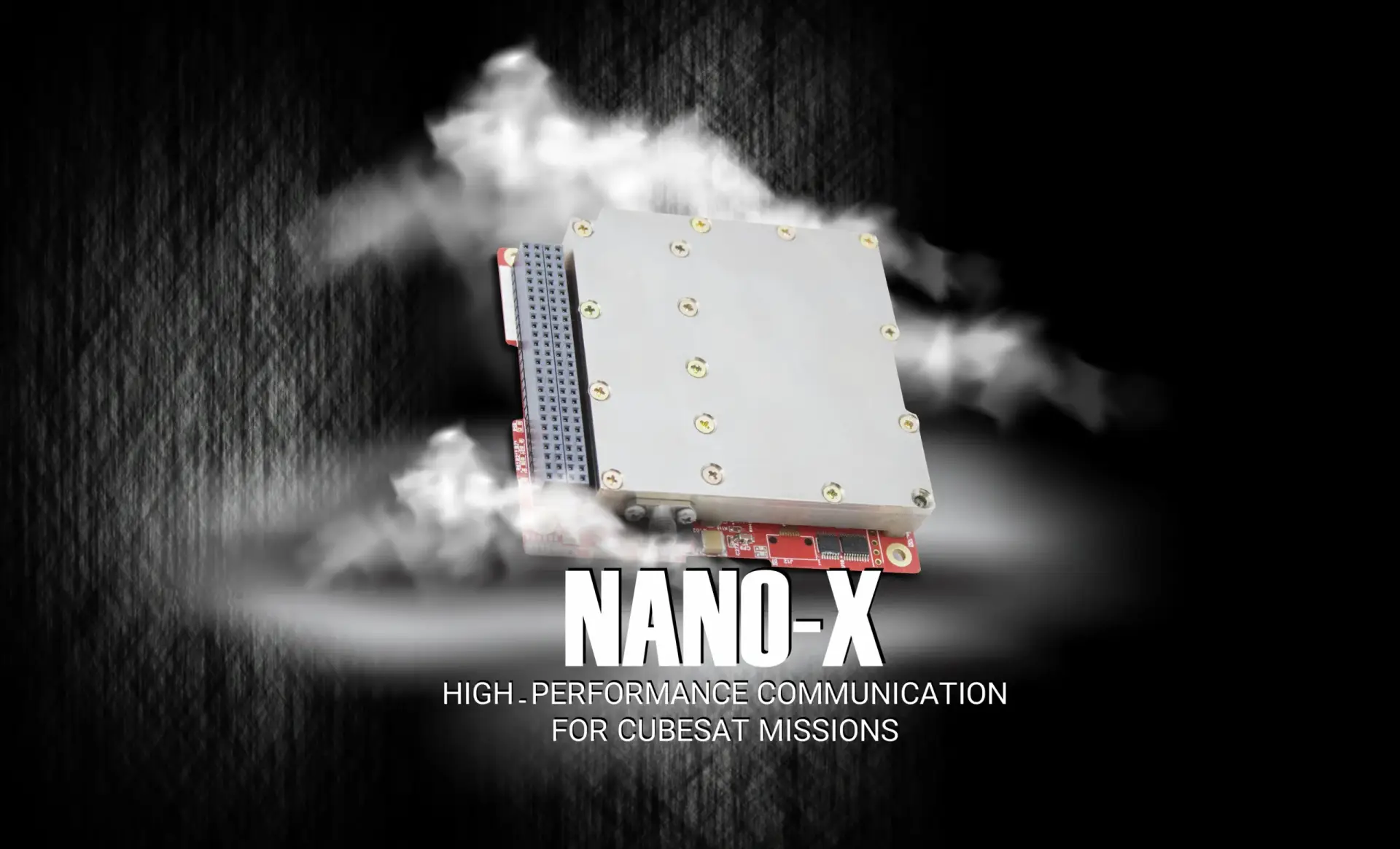

NANO-X

High-Performance Communication for CubeSat Missions

PRODUCT OVERVIEW

The NANO-X is a state-of-the-art X-band transmitter developed for CubeSats and small satellite missions. It combines efficiency, configurability, and reliability in a compact PC-104 form factor, ensuring seamless communication for the most demanding space environments.

KEY SYSTEM FEATURES

  • Dynamic Configurability: Supports in-flight adjustments for frequency, output power, and channel symbol rates.
  • Energy Efficiency: Consumes less than 15W while delivering up to 33 dBm (2W) RF output power.
  • Advanced Modulation & Coding: Includes industry-standard CCSDS coding and modulation options such as DQPSK, QPSK, and 32-APSK.
  • Versatile Interfaces: Integrates easily with satellite systems using RS232, RS422, CAN, LVDS, SPI, and QSPI.
  • Compact & Lightweight: PC-104 form factor (90 x 96 x 25 mm) weighing ~250 grams.
  • Built to Last: Operates in -30°C to +50°C ambient temperatures and withstands harsh space environments.

INNOVATIVE DESIGN

The NANO-X stands out with its adaptability and robust architecture. Designed for uninterrupted operation, it is the perfect fit for advanced CubeSat applications requiring high-speed data downlink, telemetry, and real-time payload communication.

TECHNICAL SPECIFICATIONS

RF CHARACTERISTICS

  • Frequency Range : 8.0 to 8.4 GHz (In-flight configurable)
  • Modulation : DQPSK, QPSK, OQPSK, 8-PSK, 16-APSK, 32-APSK
  • Channel Symbol Rate: 1M to 30M symbols/sec
  • RF Output Power: 23 to 33 dBm (Adjustable in 1 dB steps)
  • Frequency Stability: < 1 ppm



ELECTRICAL

  • Power Supply : 8 to 36 V (Unregulated)
  • Power Consumption : ~14 W

MECHANICAL

  • Dimensions : 90 mm x 96 mm x 25 mm
  • Mass : ~250 g
  • Connectors : SMA for RF output, 104-Pin Stackable for Data and Power

INTERFACES

  • Telemetry/Command: CAN, RS232, RS422
  • Payload Data: RS422, LVDS, SPI, QSPI

ENVIRONMENT

THERMAL

  • Operating Ambient Temperature: -30°C to +50°C
  • Operating Box Temperature: -30°C to +70°C (Satellite thermal control required)


MECHANICAL

  • Vibration: Qualified for launch and orbit conditions

APPLICATIONS

  • Earth Observation: Efficient data transmission for imaging payloads.
  • Deep Space Exploration: Reliable communication for interplanetary missions.
  • Science Payload Communication: High-speed, accurate data handling.
  • Constellation Networks: Seamless integration with multi-mission systems.

MISSION READY

The NANO-X delivers next-generation capabilities, ensuring robust communication for the most challenging space environments. Whether for high-speed data transfer or advanced telemetry systems, the NANO-X is designed to meet your mission’s needs.
