Material

• Printed circuit board (PCB): Includes FR4 and multilayer ceramic plates.
• Aluminum-reinforced printed circuit board: Form PCB-Al-PCB, aluminum
thickness by default 0.8mm;
• Kapton Aluminum: Aerospace Class Kapton, 6061 Aluminum.
Thickness specification:
• 1.6mm;
• 2.1mm;
• custom made.
1) solar panel (top / bottom)
SAP100 products for the 1U cubic star solar panel top / floor. Optional accessories:
solar sensors, temperature sensors, magnetic torque, MEMS gyroscope.
(A) SAP100a type
SAP100a-type selection of products of solar cells, the use of aerospace products
production process, high reliability, life of not less than 2 years.

Material

• Printed circuit board (PCB): Includes FR4 and multilayer ceramic plates.
• Aluminum-reinforced printed circuit board: Form PCB-Al-PCB, aluminum
thickness by default 0.8mm;
• Kapton Aluminum: Aerospace Class Kapton, 6061 Aluminum.
Thickness specification:
• 1.6mm;
• 2.1mm;
• custom made.
1) solar panel (top / bottom)
SAP100 products for the 1U cubic star solar panel top / floor. Optional accessories:
solar sensors, temperature sensors, magnetic torque, MEMS gyroscope.
(A) SAP100a type
SAP100a-type selection of products of solar cells, the use of aerospace products
production process, high reliability, life of not less than 2 years.

Material

• Printed circuit board (PCB): Includes FR4 and multilayer ceramic plates.
• Aluminum-reinforced printed circuit board: Form PCB-Al-PCB, aluminum
thickness by default 0.8mm;
• Kapton Aluminum: Aerospace Class Kapton, 6061 Aluminum.
Thickness specification:
• 1.6mm;
• 2.1mm;
• custom made.
1) solar panel (top / bottom)
SAP100 products for the 1U cubic star solar panel top / floor. Optional accessories:
solar sensors, temperature sensors, magnetic torque, MEMS gyroscope.
(A) SAP100a type
SAP100a-type selection of products of solar cells, the use of aerospace products
production process, high reliability, life of not less than 2 years.

Solar Panel Specification

ModelSAP100a
Configuration form 2S1P
Size (mm)98mm×98mm
BOLVoc(V)25℃5.35
BOLVmp(V)85℃3.96
BOLPmp(W)25℃2.35
BOLPmp(W)85℃2.04
EOLVoc(V)25℃5.13
EOLVmp(V)85℃3.80
EOLPmp(W)25℃2.06
EOLPmp(W)85℃1.86

Solar Panel Specification

ModelSAP100a
Configuration form 2S1P
Size (mm)98mm×98mm
BOLVoc(V)25℃5.35
BOLVmp(V)85℃3.96
BOLPmp(W)25℃2.35
BOLPmp(W)85℃2.04
EOLVoc(V)25℃5.13
EOLVmp(V)85℃3.80
EOLPmp(W)25℃2.06
EOLPmp(W)85℃1.86

Quickly Modular Solar Panels

Rapidly modular solar panels (RAMS, Rapid Assembling Modular Solar-panle) with a thin carbon fiber – aluminum honeycomb board as a module structure, combined with carbon fiber – aluminum honeycomb frame structure, through a number of modules and frame assembly, you can achieve solar panels Of the rapid assembly and integration, both as a spacecraft solar array plate can also be used as a development board, the output power range of 15W ~ 530W. Modular solar panels can accommodate existing deployments and drive mechanisms with a total thickness of up to 23 mm.

Quickly Modular Solar Panels

Rapidly modular solar panels (RAMS, Rapid Assembling Modular Solar-panle) with a thin carbon fiber – aluminum honeycomb board as a module structure, combined with carbon fiber – aluminum honeycomb frame structure, through a number of modules and frame assembly, you can achieve solar panels Of the rapid assembly and integration, both as a spacecraft solar array plate can also be used as a development board, the output power range of 15W ~ 530W. Modular solar panels can accommodate existing deployments and drive mechanisms with a total thickness of up to 23 mm.

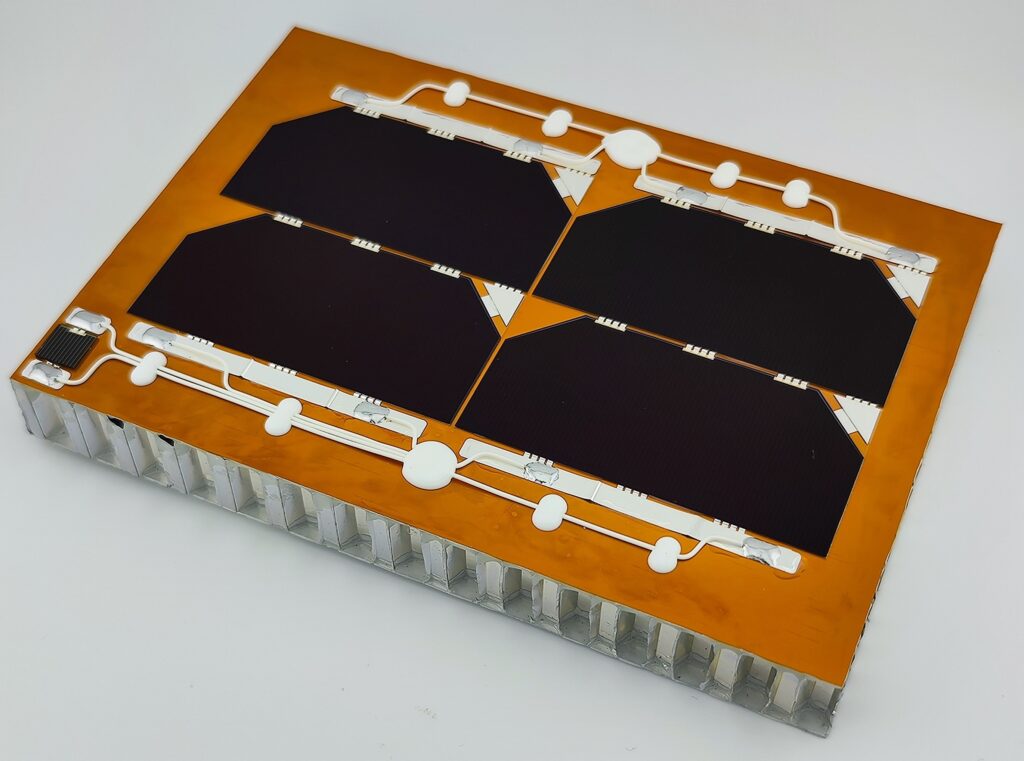

RAMS-S6 and solar module RAMS-AP6-1 - 1015 by 1235 pixels

solar module RAMS-AP6

6 unit frame RAMS-S6 - 1015 by 1235 pixels

6 unit frame RAMS-S6

Solar battery module RAMS-M19 - 1015 by 1235 pixels

solar module RAMS-AP4

4 unit frame RAMS-S4and solar module RAMS-AP4 - 1015 by 1235 pixels

4 unit frame RAMS-S4

6 unit frame RAMS-S6 and solar module RAMS-AP6 - 1015 by 1235 pixels

Solar battery module RAMS-M19

SAP100a type 1U cube satellite top - floor - 1015 by 1235 pixels

SAP100a type 1U cube satellite top - floor

RAMS-S6 and solar module RAMS-AP6-1 - 1015 by 1235 pixels

solar module RAMS-AP6

6 unit frame RAMS-S6 - 1015 by 1235 pixels

6 unit frame RAMS-S6

Solar battery module RAMS-M19 - 1015 by 1235 pixels

solar module RAMS-AP4

4 unit frame RAMS-S4and solar module RAMS-AP4 - 1015 by 1235 pixels

4 unit frame RAMS-S4

6 unit frame RAMS-S6 and solar module RAMS-AP6 - 1015 by 1235 pixels

Solar battery module RAMS-M19

SAP100a type 1U cube satellite top - floor - 1015 by 1235 pixels

SAP100a type 1U cube satellite top - floor

Solar Panel Specification

Configuration form 19S1P
Battery size(mm)40mm×80mm
Output voltage(V)34V(bus voltage 28~30V)
Modulepower(W)22W(25℃,MPPT)~15W(80℃,29V)
ModuleSize(mm)224mm×330mm(area 729.38cm2)
ModuleWeight(kg)0.062kg(with circuit 0.1448kg)
ModuleArea Specific power
(W/m2)
297.5W/m2(25℃,MPPT)~205.65 W/m2(80℃,29V)
ModuleSurface density
(kg/m2)
0.85kg/m2(with circuit 1.98kg/m2)
ModuleMass ratio power
(W/kg)
149W/kg~102.2W/kg
Plate4 unit(RAMS-AP4)6 unit(RAMS-AP6)
PlatePower(W)88W(25℃MPPT)~60W(80℃,29V)132W(25℃MPPT)~90W(80℃,29V)
PlateSize(mm)448mm×662mm672mm×662mm
PlateWeight(kg)0.59kg(with circuit 0.93kg)0.89kg(with circuit 1.4kg)
PlateArea Specific power
(W/m2)
296.7 W/m2(25℃,MPPT)~202.3 W/m2(80℃,29V)
PlateSurface density
(kg/m2)
1.99kg/m2(with circuit 3.1kg/m2)
PlateMass specific power
(W/kg)
94.9W/kg(25℃,MPPT)~64.5W/kg(80℃,29V)
Cycledelivery cycle T0 + 3month, supply capacity 20FM / month

Solar Panel Specification

Configuration form 19S1P
Battery size(mm)40mm×80mm
Output voltage(V)34V(bus voltage 28~30V)
Modulepower(W)22W(25℃,MPPT)~15W(80℃,29V)
ModuleSize(mm)224mm×330mm(area 729.38cm2)
ModuleWeight(kg)0.062kg(with circuit 0.1448kg)
ModuleArea Specific power
(W/m2)
297.5W/m2(25℃,MPPT)~205.65 W/m2(80℃,29V)
ModuleSurface density
(kg/m2)
0.85kg/m2(with circuit 1.98kg/m2)
ModuleMass ratio power
(W/kg)
149W/kg~102.2W/kg
Plate4 unit(RAMS-AP4)6 unit(RAMS-AP6)
PlatePower(W)88W(25℃MPPT)~60W(80℃,29V)132W(25℃MPPT)~90W(80℃,29V)
PlateSize(mm)448mm×662mm672mm×662mm
PlateWeight(kg)0.59kg(with circuit 0.93kg)0.89kg(with circuit 1.4kg)
PlateArea Specific power
(W/m2)
296.7 W/m2(25℃,MPPT)~202.3 W/m2(80℃,29V)
PlateSurface density
(kg/m2)
1.99kg/m2(with circuit 3.1kg/m2)
PlateMass specific power
(W/kg)
94.9W/kg(25℃,MPPT)~64.5W/kg(80℃,29V)
Cycledelivery cycle T0 + 3month, supply capacity 20FM / month
