RavenEye-3U-HSV-S (VNIR)

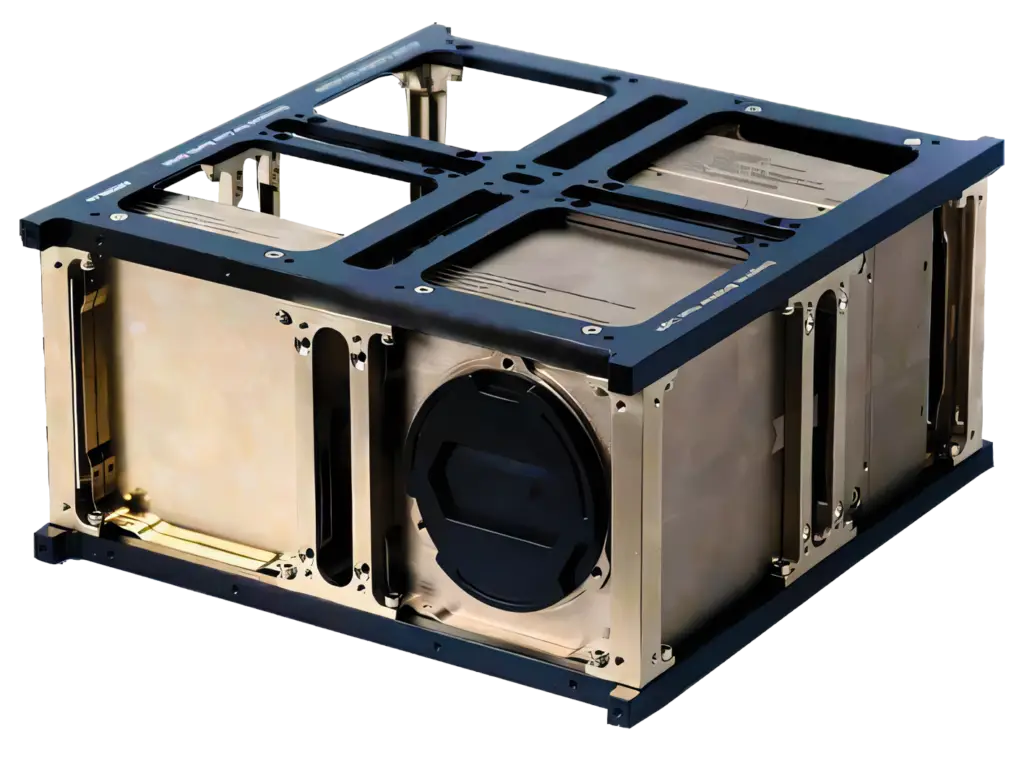

CAVU Aerospace has delivered a number of advanced CubeSat satellite cameras, including PAN Chromatic, MultiSpectral & HyperSpectral imaging systems, for diverse applications such as Earth observation, self-defense, and atmospheric monitoring
CAVU Aerospace has delivered number of PAN Chromatic, MultiSpectral & HyperSpectral satellite & rockets camera for different applications including earth observation, self-defense & monitoring purposes.
DESCRIPTION
RavenEye-3U-HSV-S is a compact hyperspectral VNIR camera in a 3U-style envelope, intended for CubeSats and small-sat platforms.
This configuration acquires each cube in a single exposure and suits scenes with motion or where temporal coherence between bands is important.
KEY FEATURES
Type: Snapshot hyperspectral VNIR camera based on a mosaic hyperspectral filter array
Spectral region: approximately 470–900 nm in multiple narrow bands
Optics: ~150 mm focal length telescope matched to a 2048×1088 sensor
Performance at 550 km: GSD on the order of 10 m, swath on the order of 50 km in nadir
Output: Hyperspectral image cubes over a high-speed digital interface
APPLICATIONS
Material classification, vegetation and water-quality analysis, environmental and atmospheric studies where narrow VNIR bands are important
BUDGET
- Form factor: ≈110 × 110 × 280 mm
- Mass: ≈3.0 kg
- Typical power: ≈20 W
PRODUCT DOCUMENTS
- Failure Modes, Effects, and Criticality Analysis (FMECA)
- Reliability Analysis Report
- Radiation Analysis Report
- Safety Assurance Plan
- Fault Tree Analysis (FTA)
- Single Point Failure Analysis (SPFA)
- Worst Case Analysis (WCA)
- Derating Analysis Report
- Availability Analysis Report
- Mechanical Analysis Report
- Maintainability Analysis Report
- Fault Detection, Isolation, and Recovery (FDIR)
- Qualification Test Plan (QTP)
- Environmental Test Reports, TVAC, Vib.
- EMC/EMI Test Report
- Radiation Test Report
- Operational Risk Assessment (ORA)
- Critical Items List (CIL)
- Materials, Processes, and Mechanical Parts List (MPMPL)
- Product Assurance Plan (PAP)
- Configuration Item Data List (CIDL)
- End Item Data Package (EIDP)
- As-Built Configuration List (ABCL)
