PIONEERING SPACECRAFT COMPUTING

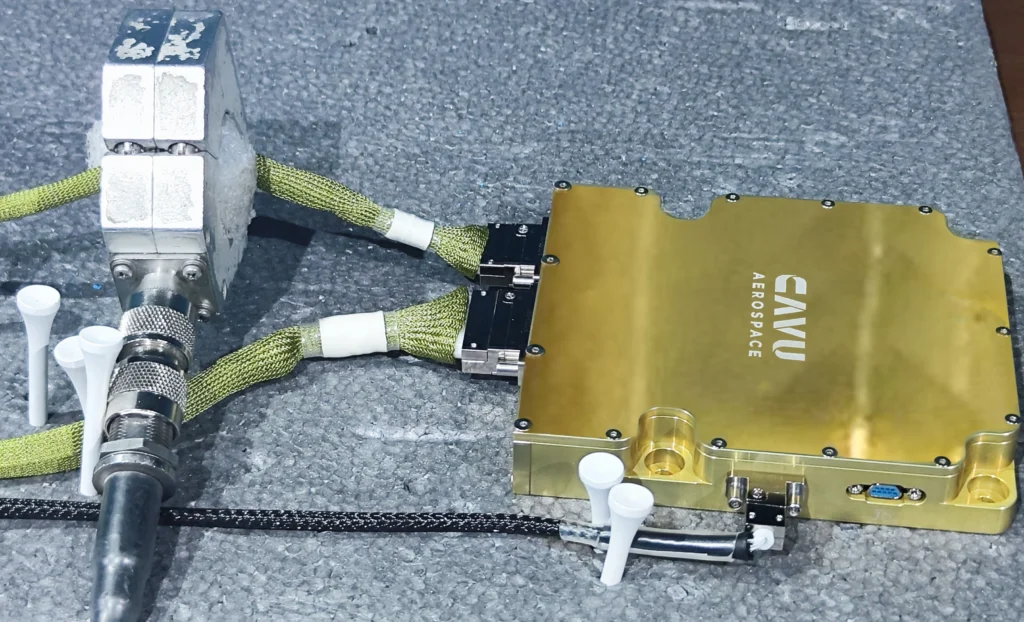

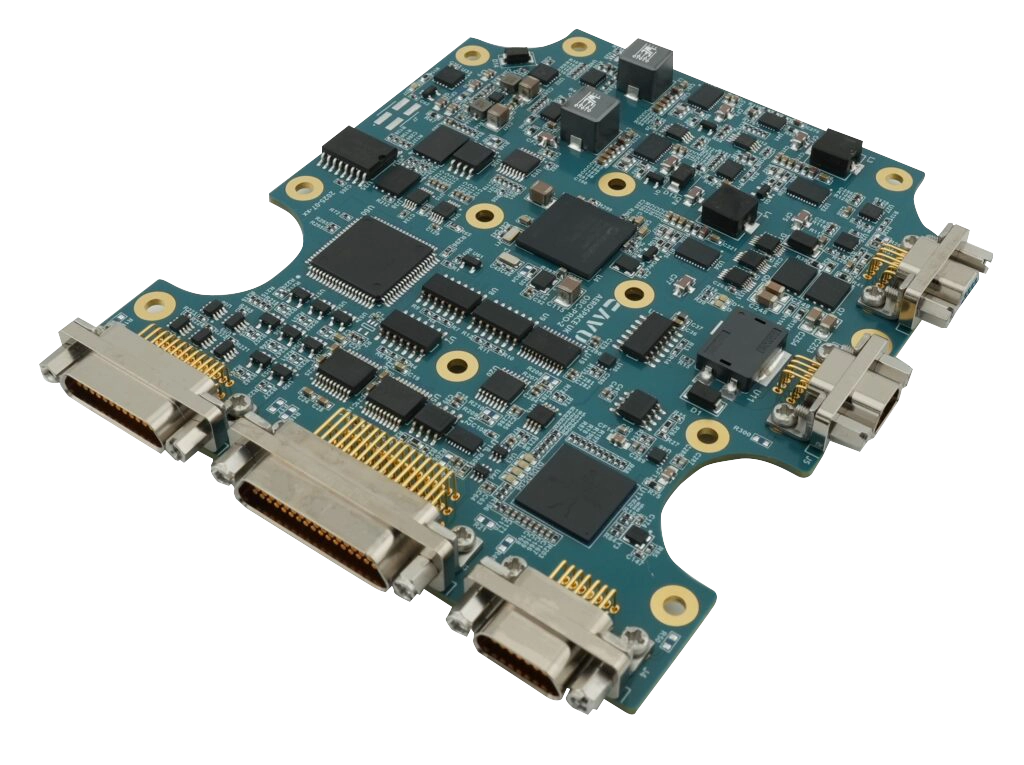

The CAVU OBC-PRO-2 is a low-profile onboard computer designed for various missions, where intensive processing is not a primary requirement. However, it offers the capability to deliver up to 200 DMIPS on its ARM Cortex-M3 core if processing demands arise. Equipped with a versatile range of interfaces—including GPIO, ADC, CAN, RS232, RS422, and optional Ethernet—the OBC-PRO-2 provides robust support for various mission-critical functions while maintaining a compact, lightweight, and energy-efficient design.
KEY FEATURES
- Processor: ARM Cortex-M3 on SmartFusion2 FPGA SoC.
- Analog Inputs: 16 Channels, 16-bit (±5V, ±10V, ±20V)
- Digital I/O: 20 GPIOs (3.3V, 5V)
- Interfaces:
- 2 CAN
- 4 RS422
- 4 RS232
- TTL UART
- I2C
- Ethernet (non-standard)
- Memory:
- 128KB eNVM Flash (ROM)
- 144KB + 191Kb RAM
- 4Mbit Serial FRAM EEPROM
- 128Mbit Flash
- RTC: 1 real-time clock
- Power Converters: Double Redundant for Main Power Converters
- Power Supply: 28V ±4V, with power consumption under 1.5W.
- Radiation Hardness:
- TID: 30Krad (Si)
- Latch-up immune
- Single Event Effects (SEE) tolerance at 60 MeV.
- Customizable Options: Fully customizable without additional NRE costs.

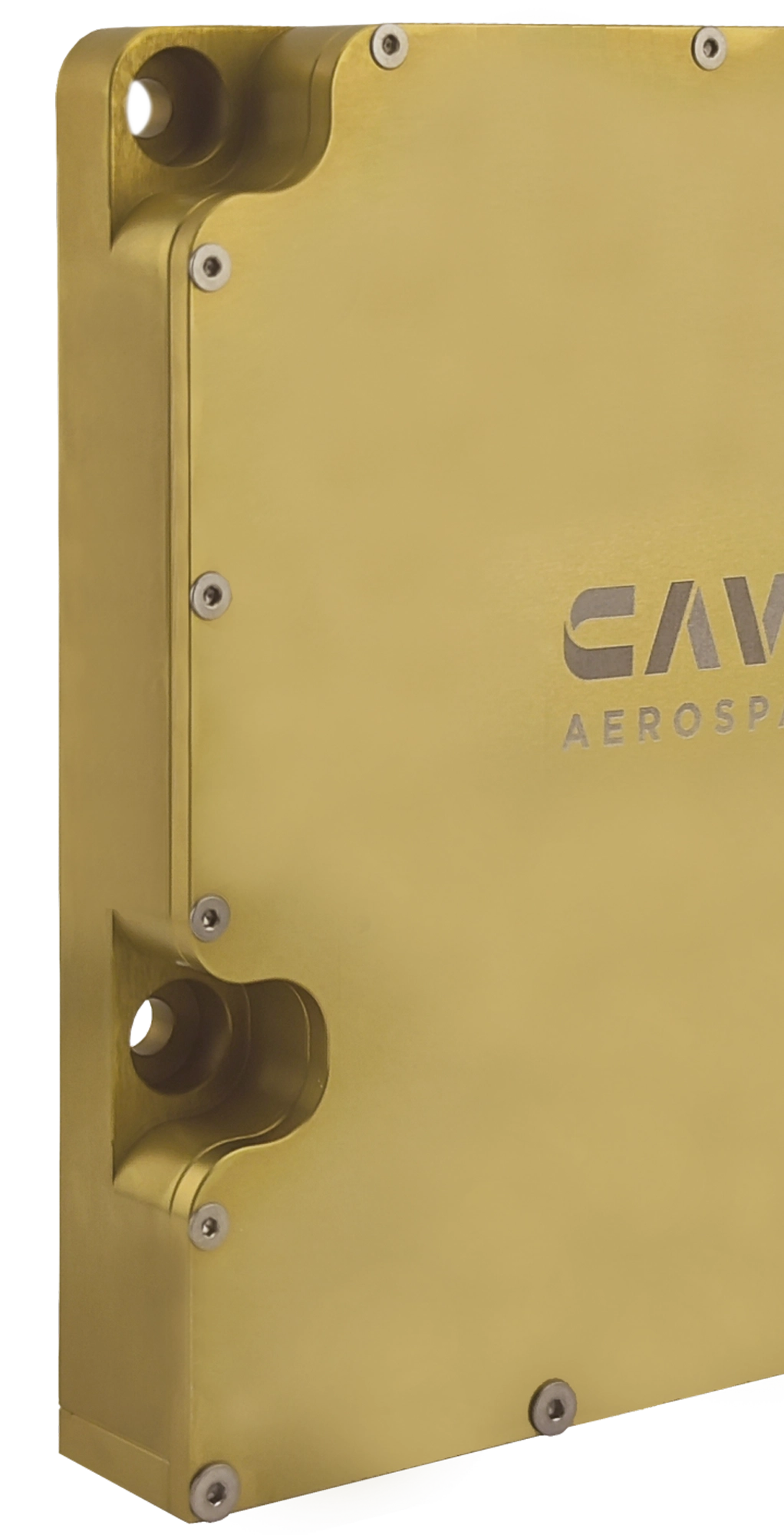

FORM FACTOR
FORM FACTOR
- Dimensions: 125x110x20 mm
- Connectors: Micro-D
MECHANICAL & ENVIRONMENTAL RESILIENCE
- Weight: Less than 500g.
- Operating Conditions: Suitable for spaceflight, capable of withstanding extreme temperature and pressure variations.
Software Support
- FreeRTOS or uC-OS-3 with bare-metal programming for full hardware control.
- Development and debugging via SoftConsole, Keil, or IAR IDEs, with JTAG support for diagnostics.
- Ongoing integration of MS Coder with the SmartFusion2 platform for enhanced mission control compatibility.
